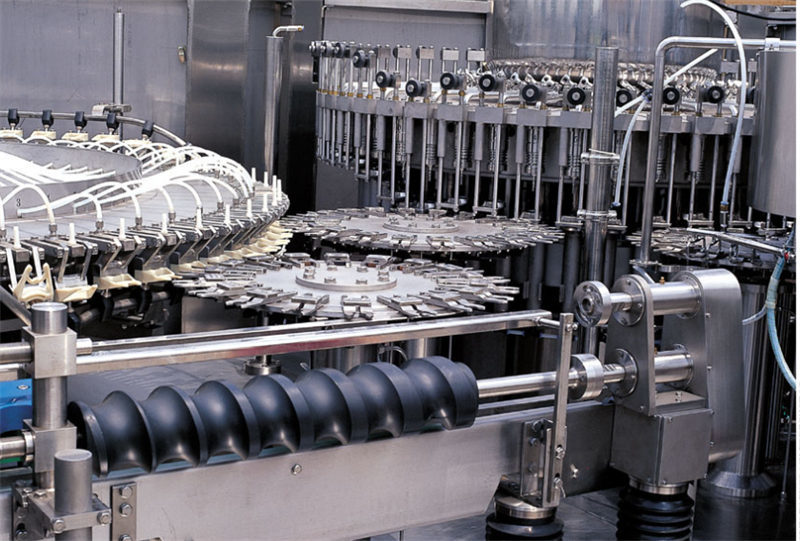

Double Seaming Food Industry Can Production Line Automatic High speed

Industry-Specific Handling Equipment

The canned food industry requires specialized equipment to ensure product integrity, safety, and efficiency. Our solutions incorporate the following key canning-specific technologies:

1. Can Depalletizing & Unscrambling

• Automatic depalletizers with magnetic or vacuum heads for gentle handling of empty cans

• Can unscramblers with twist chutes or rotary disc designs to orient and single-file cans for downstream processing

• Air conveyors for lightweight aluminum cans to prevent surface damage

2. Can Washers & Rinsers

• Inverter can washers using hot water and air knives for thorough cleaning

• Ionized air rinsers for dry cleaning applications where water is undesirable

• Sanitary design with easy access for cleaning and inspection

3. Fillers for Canned Products

Canned products vary widely in form. Our filling systems are engineered to handle:

Key filling features:

• Bottom-up filling to minimize product damage and splashing

• No-drip nozzles for clean operation

• Product hoppers with agitators to maintain consistent product flow

• Servo-driven precision for accurate fill weights

4. Brining / Syruping / Sauce Addition Units

• Rotary liquid applicators for precise addition of brine, syrup, oil, or sauce after solid filling

• Synchronized dosing with can filler for consistent product composition

• Temperature-controlled systems for hot filling applications

5. Can Seaming (Double Seaming)

The double seam is critical to canning integrity. Our seamers feature:

• High-speed rotary design (up to 800+ cans per minute)

• First and second operation rolls with precise adjustment for consistent seam formation

• Seam monitoring systems with sensors for real-time seam quality verification

• Quick changeover between can sizes and end types

• Stainless steel construction with sealed bearings for washdown environments

6. Sterilization / Retorting

Thermal processing is the cornerstone of canned food preservation. We offer:

• Static retorts for solid or delicate products

• Rotary retorts for products requiring agitation to improve heat penetration (e.g., creamy soups, pet food)

• Hydrostatic retorts for continuous high-volume processing

• Water immersion retorts for gentle handling of delicate products

• Retort room automation with basket handling systems, loading/unloading conveyors, and PLC control

• Temperature and pressure logging with traceability for compliance with food safety regulations (FDA, USDA, BRC)

7. Can Drying & Cooling

• Can dryers using high-velocity air knives to remove moisture after retorting, preventing rust and label adhesion issues

• Cooling tunnels with water spray or air cooling to reduce can temperature for labeling and packaging

8. Labeling for Cans

• Roll-fed labelers for full-body shrink sleeves or paper labels

• Shrink sleeve applicators with heat tunnels for 360-degree decoration

• Pressure-sensitive labelers for promotional or variable-data labels

9. Secondary Packaging for Cans

Cans require specialized packing solutions:

• Wrap-around case packers for tight, secure case formation

• Tray packers for shelf-ready trays

• Shrink-wrapping machines for multipacks

• Robotic pick-and-place for delicate handling of filled cans

• Layer pads and dividers for stacked can protection

10. Palletizing & Load Securing

• Robotic palletizers with custom end-of-arm tooling for gentle case handling

• Pattern software for optimized pallet stability and cube utilization

• Automatic slip sheet placers for interlayer protection

• Stretch wrappers with top sheet applicators for dust and moisture protection

• Pallet strappers for additional load security during transit

Key Features of Our Intelligent Canning Line

Benefits to Our Customers

Applications

Our intelligent packaging lines are ideally suited for:

Why Choose Our Intelligent Canning Line?

We deliver more than just equipment—we provide integrated canning solutions tailored to your specific production requirements. From the initial consultation and line layout design to installation, commissioning, and ongoing support, our team works closely with you to build a packaging line that:

• Meets your current production targets (from thousands to hundreds of thousands of cans per day)

• Handles your specific product characteristics (solid, liquid, particulate, viscosity)

• Ensures hermetic seal integrity and sterilization validation

• Adapts to future growth and changing market demands

• Delivers a rapid return on investment (ROI)

• Ensures operational excellence with minimal downtime
