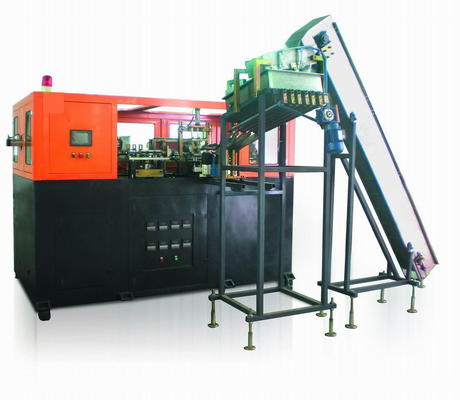

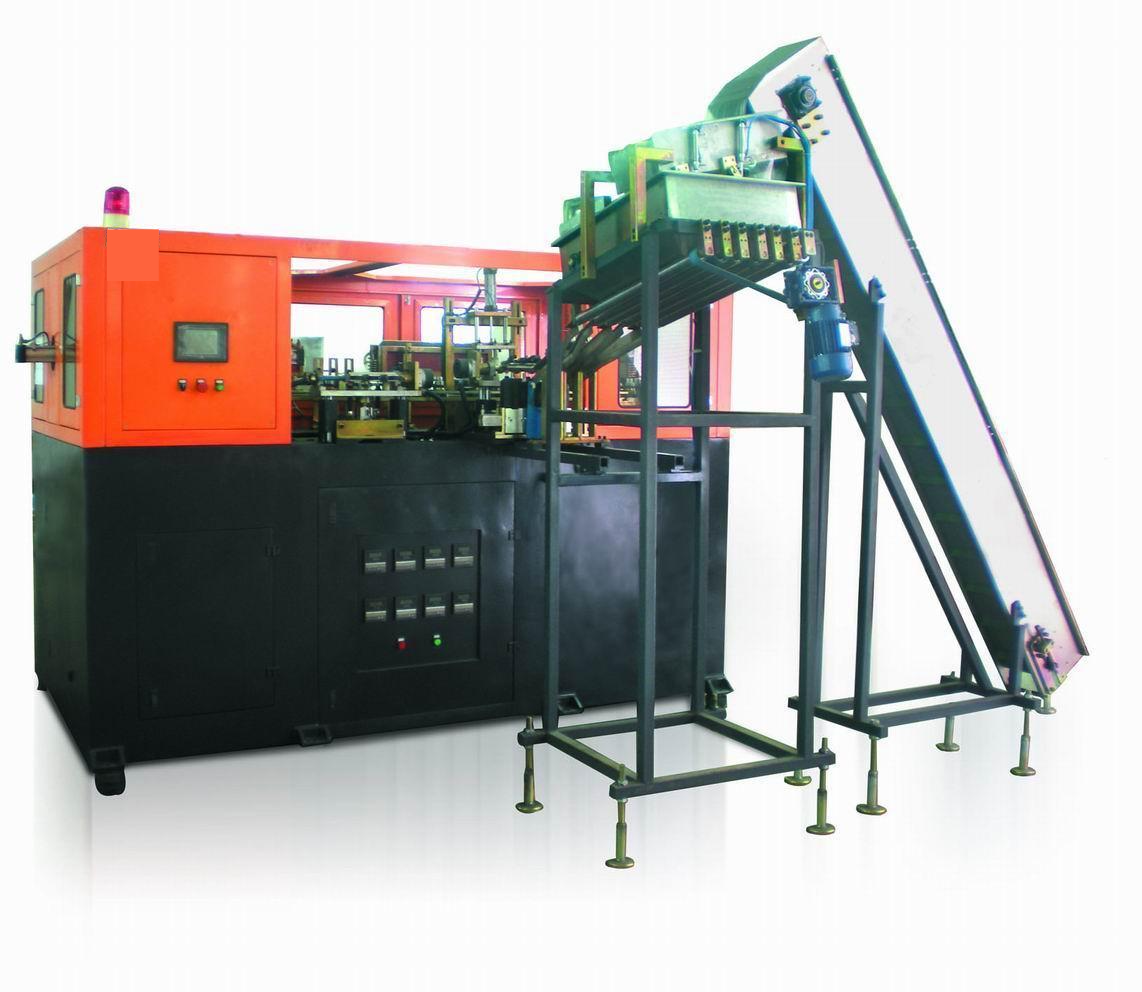

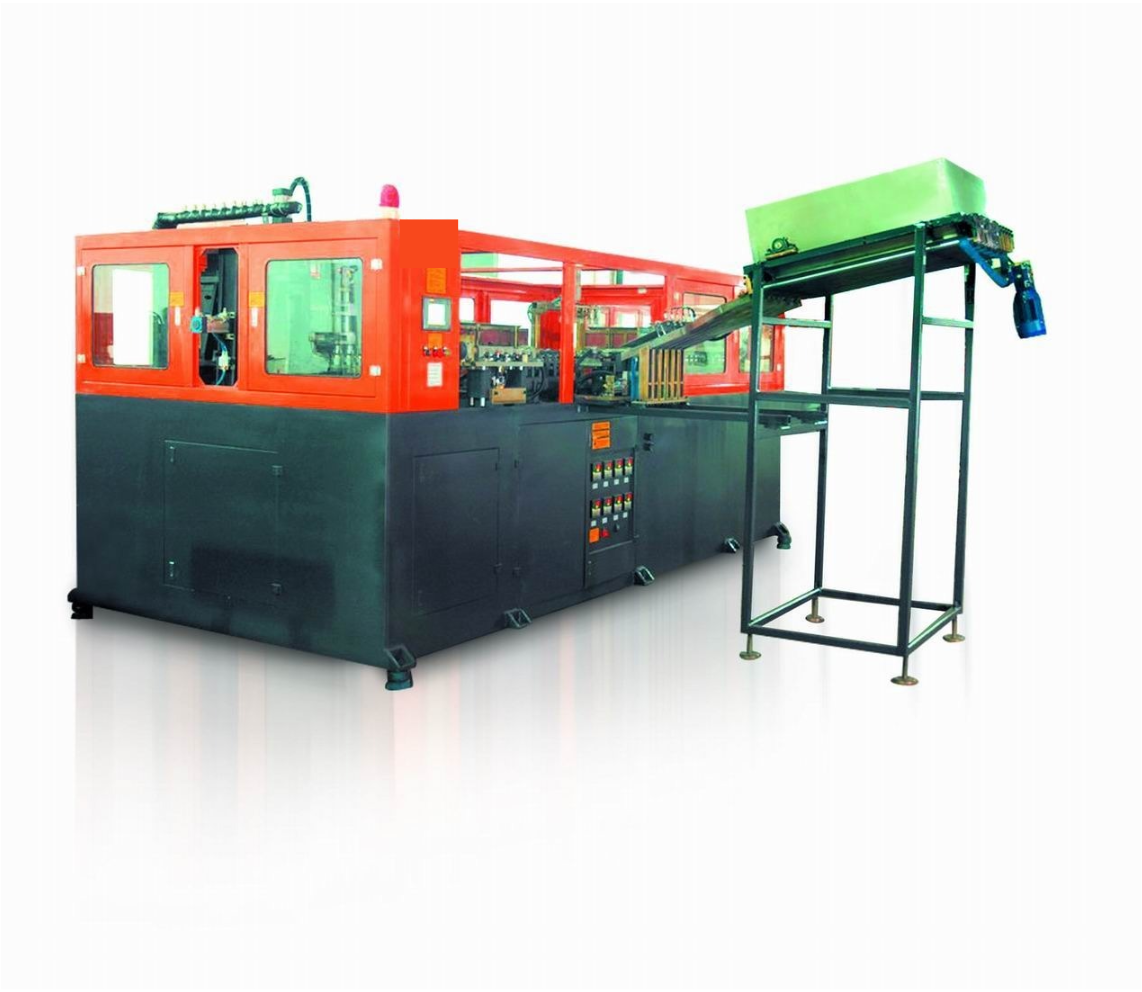

Linear Stretch Blow Molding Machine 380V 50Hz 3phase 4000–10,000 Bottles/Hour

Introduction

A Linear Stretch Blow Molding Machine (also known as a Linear Blow Molder or Linear PET Blow Molding Machine) is a high-efficiency equipment system designed to produce plastic bottles and containers, primarily from PET (polyethylene terephthalate) preforms. Unlike rotary blow molding machines that operate on a rotating turntable, linear machines use a linear (in-line) conveying system where preforms are heated, transferred, and blown in a straight-line motion. This design offers advantages in terms of flexibility, ease of operation, and lower initial investment, making it ideal for medium-scale production and frequent format changeovers.

• Flexible Production
  Linear blow molding machines are well-suited for multi-SKU (stock-keeping unit) production environments. They allow quick mold changes, typically within 15–30 minutes, enabling manufacturers to switch between different bottle shapes and sizes efficiently.

• Simple & Reliable Operation
  The linear design features a straightforward mechanical structure with fewer moving parts compared to rotary machines. This results in easier maintenance, simplified operation, and reduced downtime.

• Precise Heating System
  Equipped with infrared (IR) oven heating systems with individually adjustable temperature zones, the machine ensures uniform heating of PET preforms. This precision is critical for achieving consistent bottle quality with optimal material distribution.

• High-Quality Blow Molding
  The machine uses a stretch rod and high-pressure air to expand heated preforms within the mold cavity. Advanced servo-controlled stretch systems ensure:

  • Consistent wall thickness distribution

  • High clarity and mechanical strength

  • Accurate neck finish dimensions

• Energy Efficiency
  Modern linear blow molding machines incorporate energy-saving features such as:

  • Servo-driven clamping and stretching systems

  • Optimized oven designs with reflective panels

  • Reduced air consumption compared to older models
