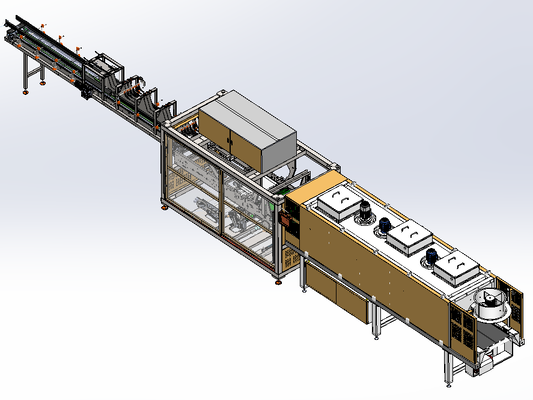

High speed shrink wrapper machine

1
MOQ
custom
Price
High speed shrink wrapper machine
Features Gallery Product Description Chat Now
Features
Specifications
Stable Operating Capacity: 60 Cartons/min
Packing Size Range: (248–410) × (200–300) × (115–300) Mm
Product Diameter Bottle Diameter: 52–106 Mm
Product Height: 110–300 Mm
Applicable Container Types: Cans, Glass Bottles, PET Bottles, Paperboard Cartons, Etc
Machine Dimensions: Approx. 13,740 × 1,600 × 2,540 Mm
Machine Weight: 5 Tons
Power Rating Total Installed Power: 75 KW Holding Power: 24 KW Average Operating Power: 45 KW
Compressed Air (a) Pressure: 0.4–0.8 MPa (b) Consumption: 100 L/min
Control Voltage: 24 V DC
Floor Load: Approx. 8 × 7,500 N
Noise Level: ≤ 65 DB
Film Material: PE Film
Bottle Tipping Rate: ≤ 1 Bottle Per 10,000 Bottles
Infeed Conveyor Height: 1150 Mm ± 50 Mm
Highlight:

high speed shrink wrapper machine

,

case packer machine with warranty

,

shrink wrapper machine for packaging
Basic Infomation
Place of Origin: CHINA
Brand Name: YUQING
Model Number: YQ-MB-01
Payment & Shipping Terms
Delivery Time: 60days
Product Description
Introduction to Shrink Wrapper Machine
A shrink wrapper machine is an automated packaging equipment that uses heat-shrinkable films (such as PE, POF, PVC, or PET) to tightly wrap products. After the film is applied and sealed, the products pass through a heating tunnel where the film shrinks to conform precisely to the shape of the items. This process provides excellent product protection, enhances visual appeal, and offers anti-counterfeiting and dustproof benefits.
Key Features & Working Principle:
  • Seamless Integration: The machine typically handles the entire process automatically, including product conveying, grouping, film wrapping, sealing, and heat shrinking, making it easy to integrate into existing production lines.
  • Advanced Sealing Technology: Equipped with constant-temperature sealing blades and anti-cut protection devices, it ensures strong, neat seals without burning or smoking, while preventing product damage.
  • Precise Temperature & Speed Control: Utilizing PID temperature control and full servo drive systems, the machine guarantees uniform heat distribution and high packaging precision.
  • High Flexibility: Featuring a high-compatibility design, it allows for quick and tool-less adjustments to accommodate various product sizes and packaging patterns without changing molds.
  • Cost-Effective & Eco-Friendly: It reduces packaging material costs and is increasingly adapting to green, biodegradable films to meet modern sustainability standards.
  •
