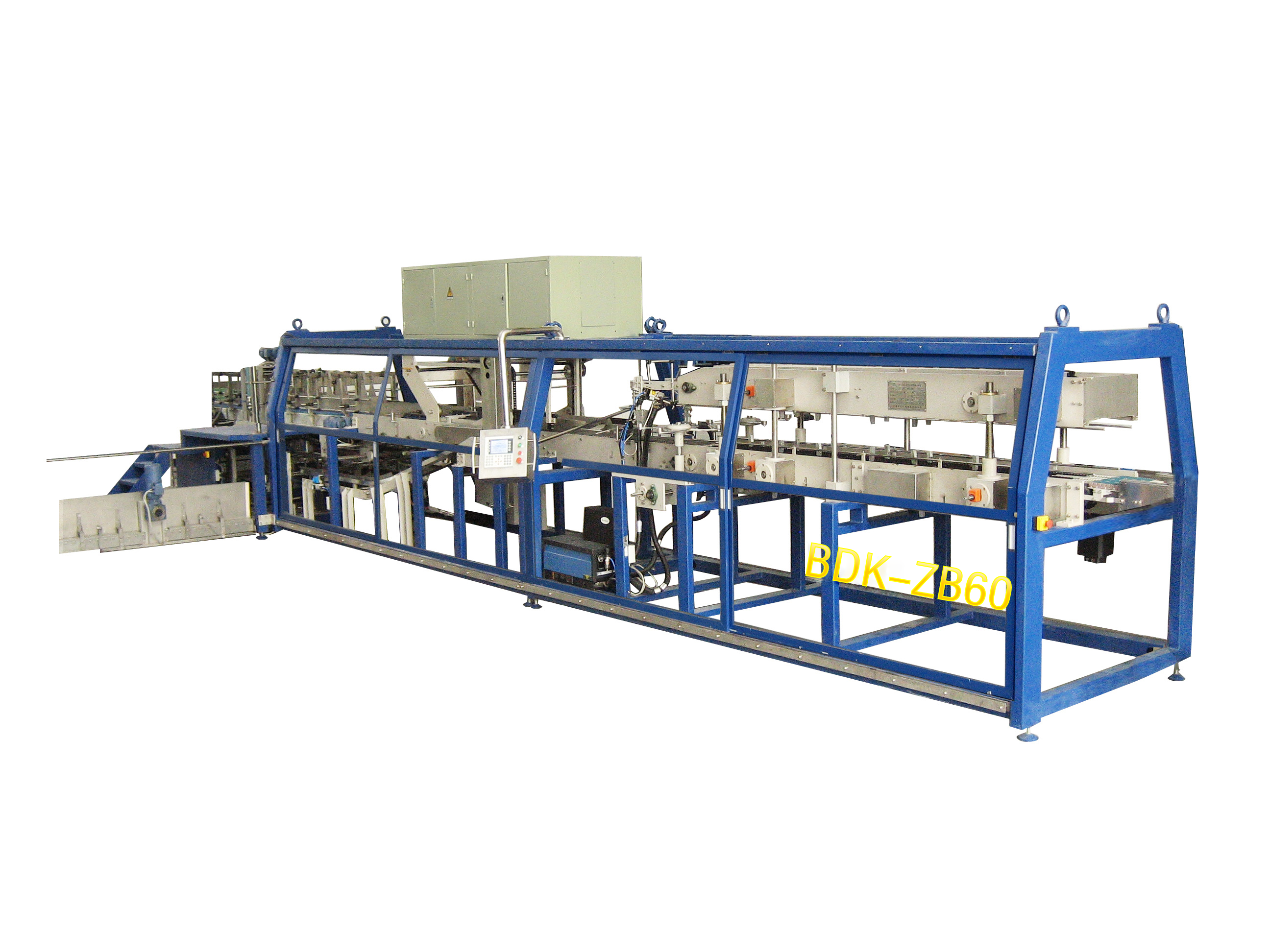

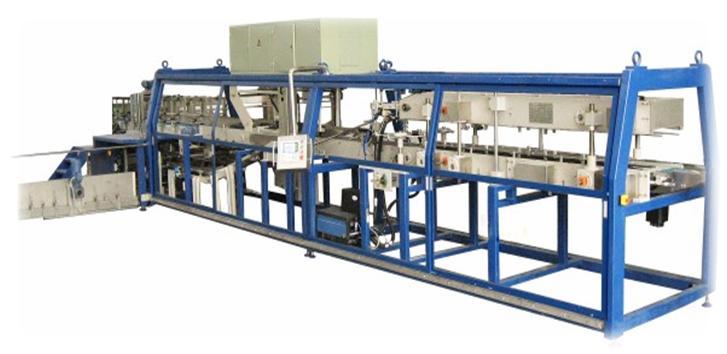

High Speed Wraparound Case Packer Machine 20–60cases/Minute

wrap-around case packer is a high-speed packaging machine designed to form a corrugated cardboard case around a product or a group of products (such as bottles, cans, cartons, or multipacks). Unlike traditional case packers that load products into pre-formed cases, the wrap-around machine wraps a flat blank of cardboard directly around the product, forming a tight, secure case.

Key Features:

• Blank Fed: Starts with a flat corrugated blank, reducing storage space and material costs compared to pre-glued cases.

• Product-Centric Forming: The case is formed around the product, ensuring a snug fit that minimizes movement during transportation.

• High Speed: Capable of operating at significantly higher speeds (often 20–60 cases per minute or more) compared to traditional RSC (Regular Slotted Container) case packers.

• Integrated Operation: Combines case forming, product grouping, loading, and sealing (usually via hot melt adhesive) into a single continuous process.

How It Works:

1. Product Collation: Products (e.g., 12 bottles, 24 cans) are grouped into the desired pattern.

2. Blank Feeding: A flat corrugated blank is pulled from a magazine.

3. Wrapping: The blank is wrapped around the collated products.

4. Sealing: The side seam and end flaps are folded and sealed with glue, creating a sturdy case without requiring a separate "box" to be pre-made.

Advantages:

• Cost Efficiency: Corrugated blanks are cheaper to purchase and store than pre-assembled cases (RSCs).

• Material Savings: Reduces corrugated material usage by approximately 15–20% because it eliminates overlapping flaps and uses a "tight fit" design.

• Product Protection: The tight wrap minimizes product shifting, reducing damage during transit.

• Footprint: Generally has a smaller machine footprint than traditional drop packers or side loaders for similar output speeds.

• Aesthetics: Creates a neat, "retail-ready" package with a clean appearance.

Common Applications:

• Beverage Industry: Cans and bottles (beer, soda, water).

• Food: Yogurt cups, juice cartons, canned goods.

• Household Goods: Detergent bottles, aerosol cans.
