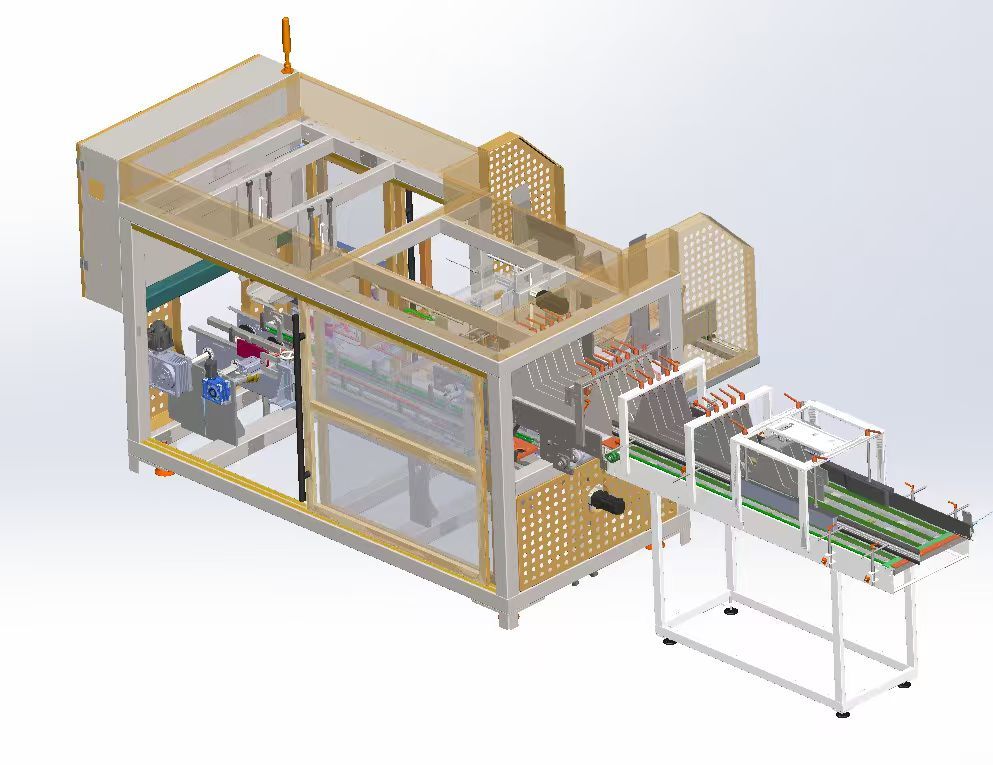

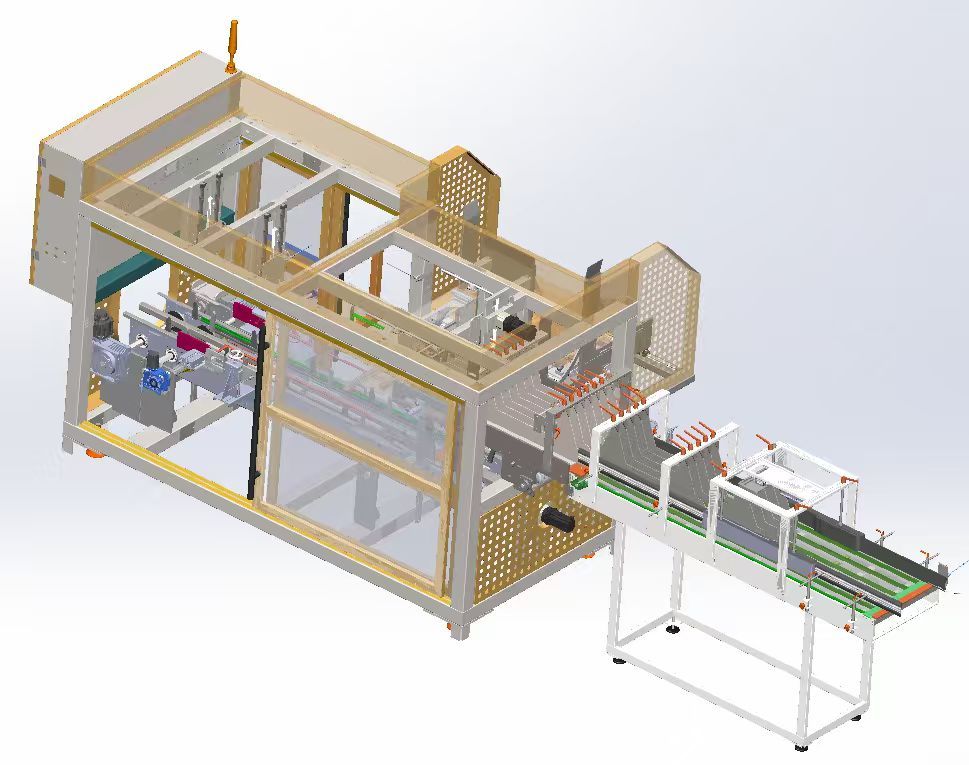

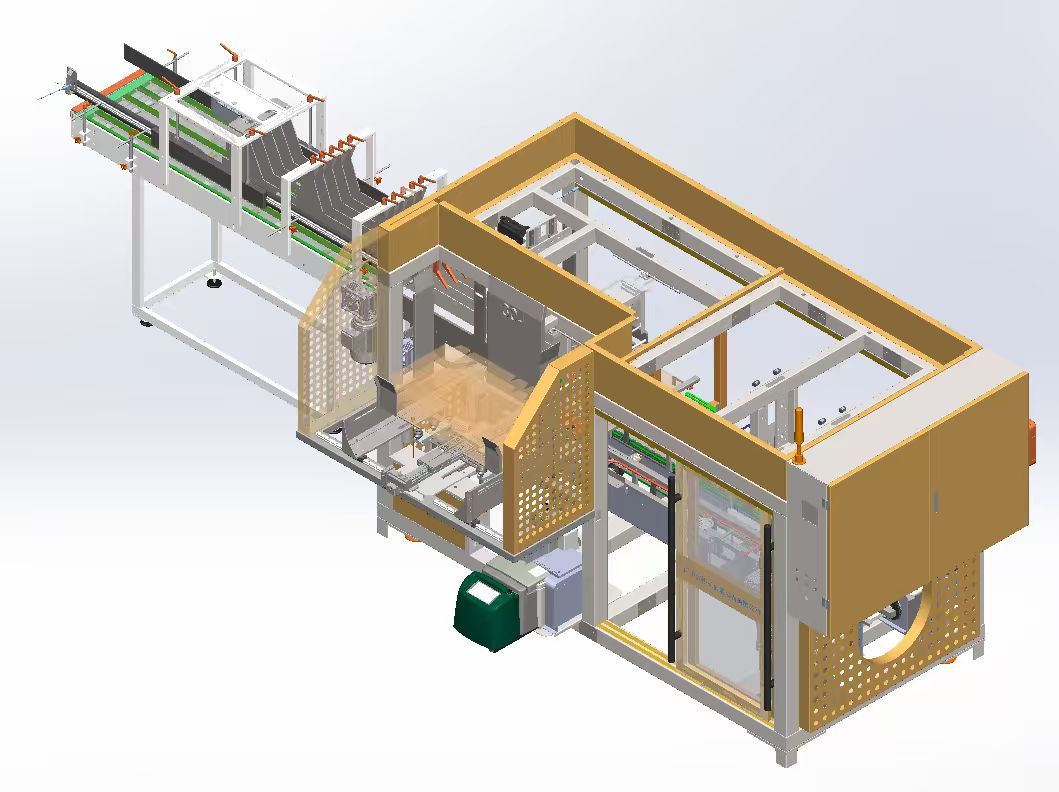

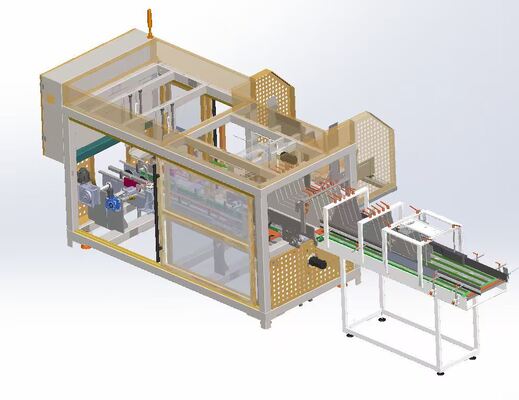

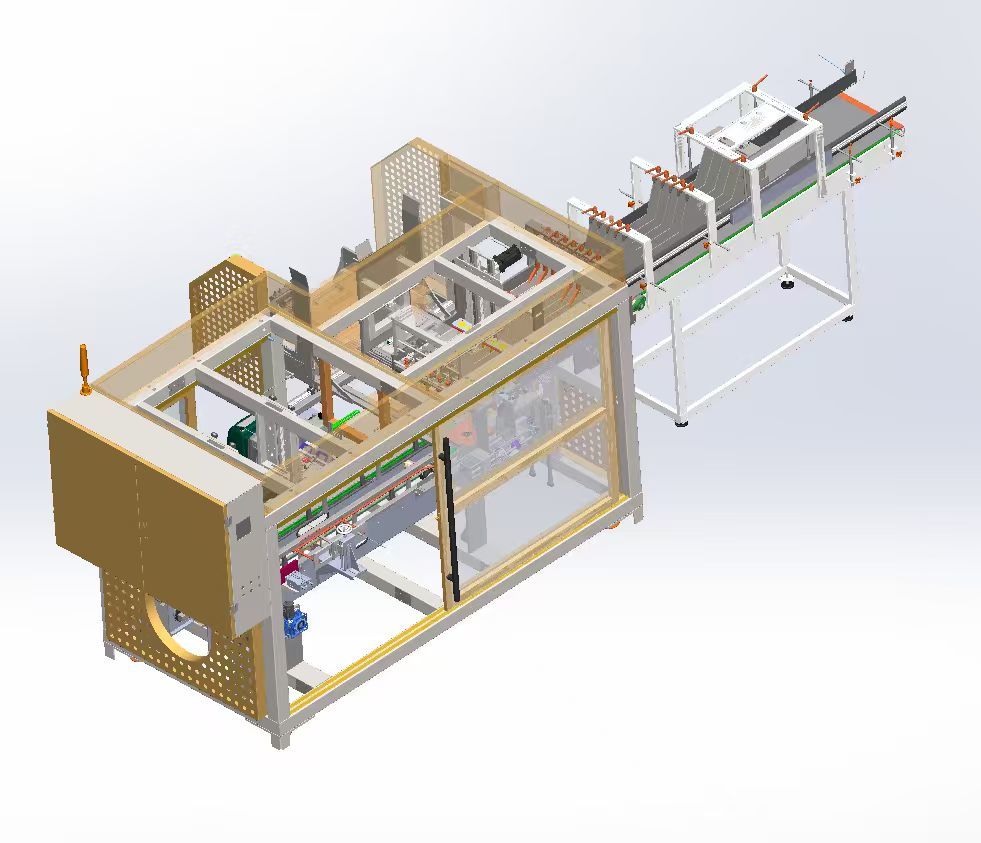

Drop-Type Wrap-Around Case Packer

1
MOQ
custom
Price
Drop-Type Wrap-Around Case Packer
Features Gallery Product Description Chat Now
Features
Specifications
Operational Capacity: 20 Cases/min
Applicable Container Types: Cans, Glass Bottles
Packaging Formats: 3×4 , 3×5 , 4×5 , 4×6 Bottles/case
Equipment Dimensions/weight: 6235*2475*1950mm /3.5T
Packaging Pass Rate: >99%
Equipment Power: 10KW
Paper Board Loading Method: Manual
Paper Board Storage Capacity: ≥200 Sheets
Power Supply 3-phase: 380V, 50Hz
Control Power Supply: 24V DC
Compressed Air (a) Pressure: 0.4~0.8MPa (b) Air Consumption: 100L/min
Floor Load: Approx. 8 × 7,500 N
Noise Level: ≤ 65 DB
Hot Melt Adhesive Consumption: Curing Time 3-5g/case, 2.5s
Container Infeed Conveyor Method: Frequency Control
Highlight:

Drop-Type Wrap-Around Case Packer

,

Drop Case Packer with warranty

,

Wrap-Around Case Packer for packaging
Basic Infomation
Place of Origin: CHINA
Brand Name: YUQING
Model Number: YQ-DLGB-01
Payment & Shipping Terms
Delivery Time: 60days
Product Description
Drop-type wrap-around case packer is a highly efficient, fully automated secondary packaging machine designed to pack pre-grouped products directly into corrugated cartons using a controlled gravity drop mechanism. It is widely applied in the beverage, food, dairy, and daily chemical industries to pack bottles, cans, and pouches into sturdy, one-piece wrap-around cases.
Key Features & Working Principle:
  • Gravity Drop Mechanism: Products are precisely grouped and dropped vertically into an open carton blank below. This layout ensures stable handling, precise placement, and a compact footprint.
  • Continuous & High-Speed Operation: Featuring a drop-type horizontal loading and bottom-fed blank system, it supports continuous operation with speeds typically ranging from 10 to 25 cases per minute.
  • Advanced Servo Control: Driven by multi-axis servo motors and a centralized PLC, the machine guarantees accurate timing for product infeed, carton forming, and hot-melt glue sealing.
  • High Flexibility: The modular design allows for quick and tool-less changeovers to accommodate various carton sizes and product arrangements, significantly reducing production downtime.
  • Reliable Sealing & Safety: Equipped with premium hot-melt glue systems, it ensures secure folding and sealing for both top and bottom flaps. The solid steel frame and safety guarding ensure stable, low-noise operation and compliance with international safety standards.
