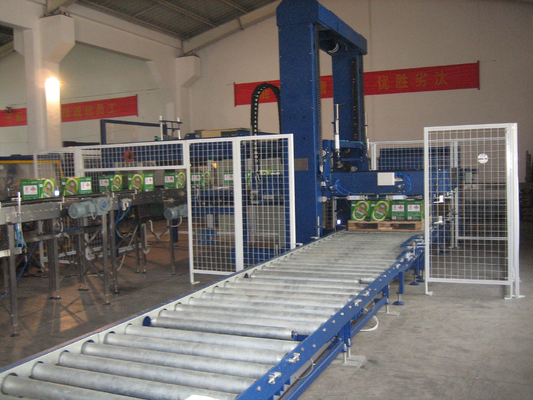

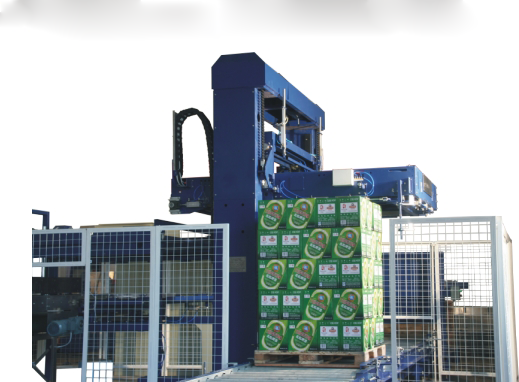

10 To 40 Layers/Minute Low Level Palletizer To Stack Bags Boxes Cases Bottles

Introduction

A Low-Level Palletizer is an automated palletizing machine designed to stack bags, boxes, cases, bottles, or other packaged products onto pallets at floor level. Unlike high-level palletizers that operate from an elevated platform, low-level palletizers feature a low infeed height, typically between 600–1,200 mm, allowing operators to easily access the machine for maintenance, troubleshooting, and format changeovers without the need for stairs or platforms.

Low-level palletizers are widely used in industries such as food and beverage, pharmaceuticals, chemicals, building materials, and logistics, offering a cost-effective and space-efficient solution for medium to high-volume palletizing operations.

• Low Infeed Height
  The low infeed design allows for:

  • Easy integration with existing conveyors at ground level

  • Simplified operator access for maintenance and adjustment

  • Reduced safety risks compared to elevated platforms

• Versatile Product Handling
  Capable of palletizing a wide range of product types:

  • Cases (corrugated cartons)

  • Bags (plastic, paper, woven)

  • Bottles and cans (with or without trays)

  • Bundles and shrink-wrapped packs

• Flexible Pallet Patterns
  The machine can create various stacking patterns, including:

  • Column stacking (straight layers)

  • Interlocking stacking (for improved stability)

  • Custom patterns programmable via HMI

• High Efficiency & Reliability

  • Production speeds typically range from 10 to 40 layers per minute (or 300 to 2,000+ cases per hour)

  • PLC control system with HMI touchscreen for easy operation and monitoring

  • Servo-driven mechanisms for precise layer formation and pallet placement

• Multiple Pallet Handling Options





  Feature	Description
  Pallet Dispenser	Automatic pallet feeding from a pallet magazine
  Slip Sheet Dispenser	Optional for inserting slip sheets between layers
  Pallet Conveyor	Integrated conveyor for pallet infeed and discharge

• Compact Footprint
  Low-level palletizers typically require less floor space than high-level or robotic palletizers, making them suitable for facilities with space constraints.
