Parallel Robot Spider Hand Packing Machine Pressure Lift Ring Machine

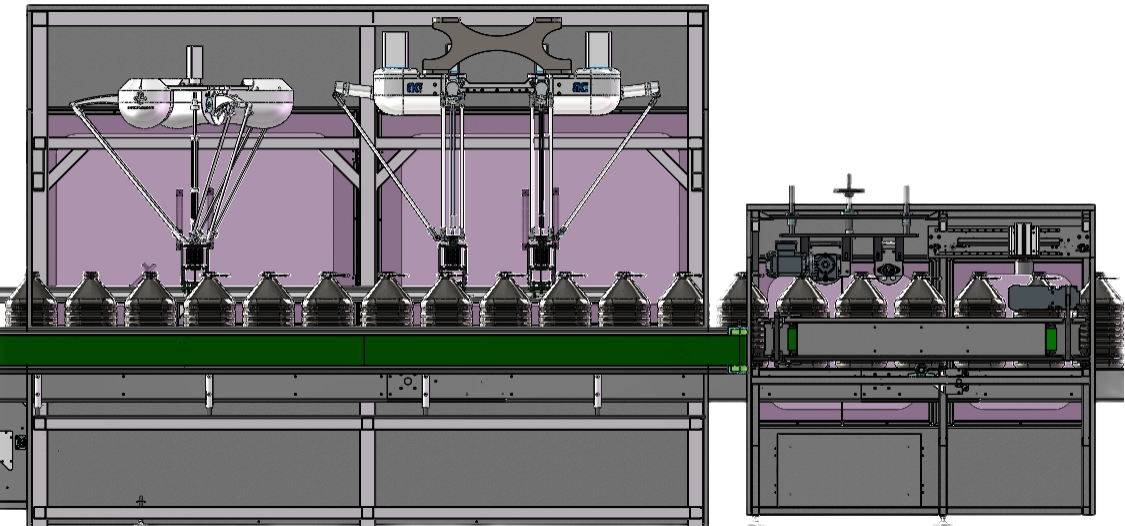

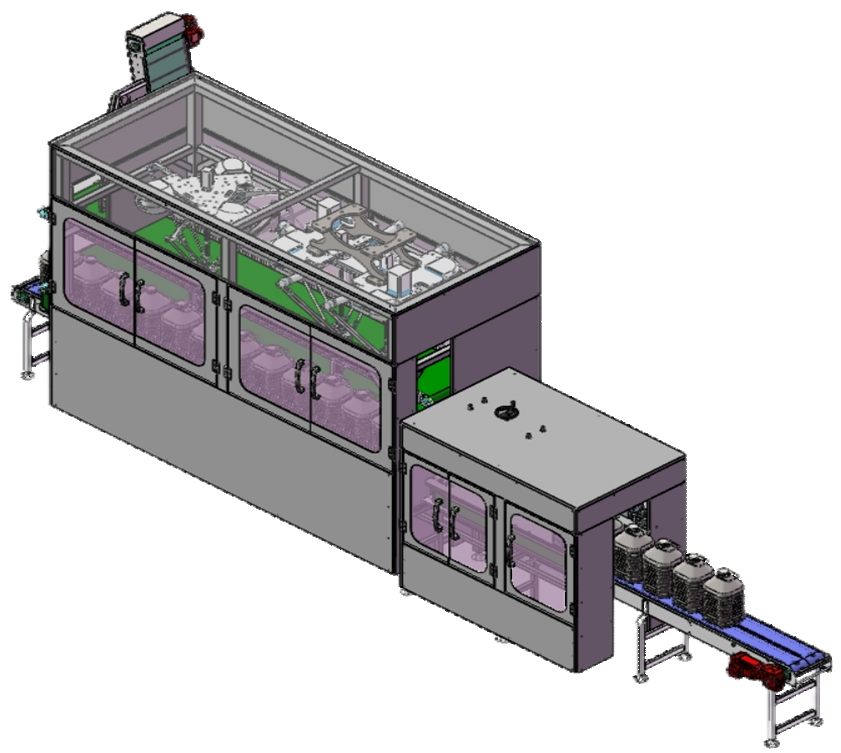

YQ-ZZYJ-01 PARALLEL ROBOT (SPIDER HAND) PRESSURE LIFT RING MACHINE

Product Introduction / INTRODUCTION
This model is specifically designed to address issues such as material jamming caused by improper ring alignment during high-speed centrifugal or vibratory discharge operations. It is compatible with various types and weights of handles, requiring only the replacement of corresponding collets to fundamentally resolve a range of discharge-related problems.

Product Features / CHARACTERISTICS

• Intelligent Sorting & Visual Inspection: Accurately sorts handles and combines with visual inspection to ensure neat and orderly arrangement.

• Clamping & Rotary Positioning: Flexibly grips and rotates handles to preset orientations, enhancing automation efficiency.

• Adaptive Conveying: Automatically adjusts bottle spacing to maintain uniform conveying speed, reducing the risk of material jams.

• Roller Ring Pressing & Intelligent Recirculation: Ensures firm pressing of handles and recirculates improperly gripped handles for re-sorting, improving overall operational efficiency.





  Model YQ-ZZYJ-01
  Pressure ring speed	2500 to 7000 times / hour
  Applicable bottle shape	All kinds of bottle types
  Hang ring rate	100%
  Pressure ring pass rate	99.8%
  work environment	0-50℃
  bleed pressure	0.6Mpal
  gas consumption	1m³/minl
  working voltage	DC24V,AC220V,_AC380V
  power	20KW
  Land space	It is 6.5 meters long, 2.2 meters wide and 2.7 meters high
