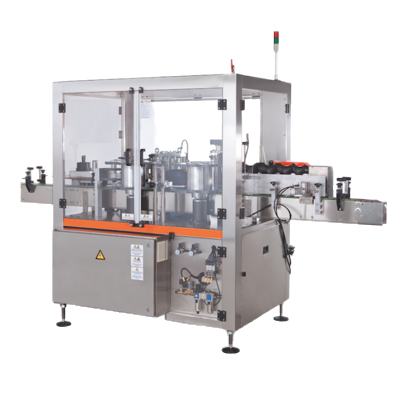

PLC Fully Automatic Rear Handle Applicator Machine Innovative Structural

YQ-XY-02 FULLY AUTOMATIC REAR HANDLE GLOVE HANDLE MACHINE

Product Introduction / INTRODUCTION

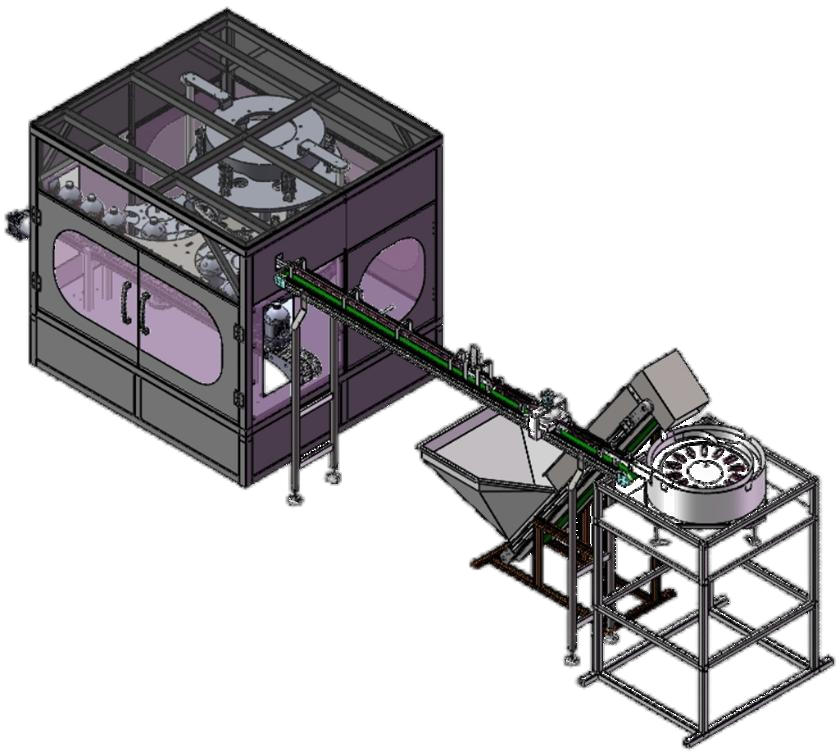

This fully automatic rear handle applicator, developed by our company, features an innovative structural design. Driven by a main rotating shaft, the machine achieves automatic positioning and installation of handles, improving efficiency, reducing costs, and eliminating the drawbacks associated with manual operations.

Product Features / CHARACTERISTICS

• Innovative Structural Design: Utilizes a main rotating shaft as the core drive mechanism for stable and efficient operation.

• Precise Positioning and High Speed: Ensures accurate handle placement with high-speed operation, enhancing production efficiency.

• Easy Installation with Automatic Positioning: Automatically locates and installs handles, ensuring consistent quality and reliability.

• High Efficiency: Capable of continuous multi-handle installation, significantly boosting production throughput.

• Model number YQ-TB-01		YQ-TB-02	YQ-TB-03	YQ-TB-04
  Applicable bottle type	4000ML-5500ML (Water bottle, oil bottle)	900ML-2500ML (oil bottle)	900ML-2500ML (oil bottle)	900ML-2500ML (oil bottle)
  output	4000-6000BPH	6000BPH	8000BPH	12000BPH
  Total power of equipment	5KW,_AC380C/50HZ	6KW,_AC380C/50HZ	7KW,_AC380C/50HZ	7KW,_AC380C/50HZ
  control source	24V DC	24V DC	24VDC	24VDC
  compressed air	0.7MPa	0.7MPa	0.7MPa	0.7MPa
  gas consumption	0.6m³/min	0.8m³/min	1m³/min	1.2m³/min
  delivery head	800±50mm	800±50mm	800±50mm	800±50mm
  Equipment size	Length 3500 width 2200 height 2500	Length 3800 width 2200 height 2500	Length 3800 width 2200 height 2500	Length 3800 width 2200 height 2500
  weight of equipment	1500kg	1700kg	1800kg	2000kg
  any power-generating or power-driven machine	SEW	SEW	SEW	SEWi
  frequency transformer	Danfoss	Danfoss	Danfoss	Danfossi
  PLC	Mitsubishi	Mitsubishi	Mitsubishi	Mitsubishi
