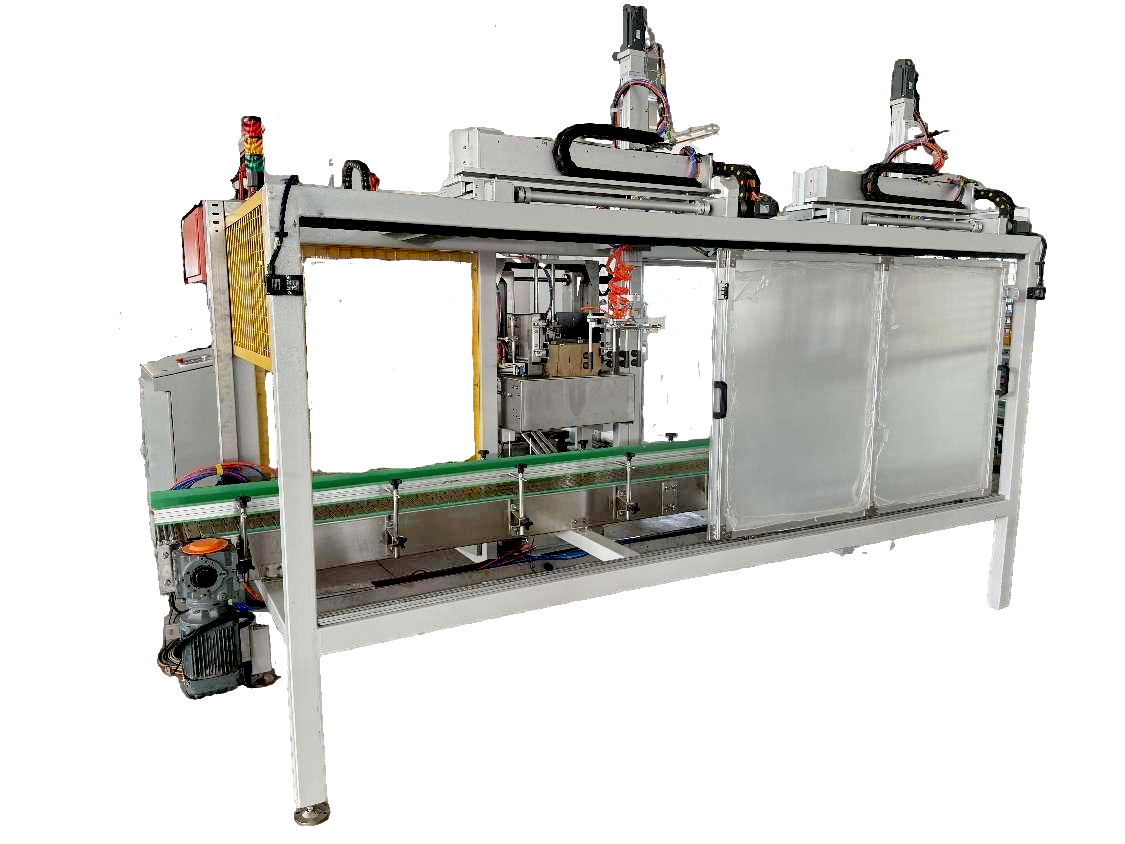

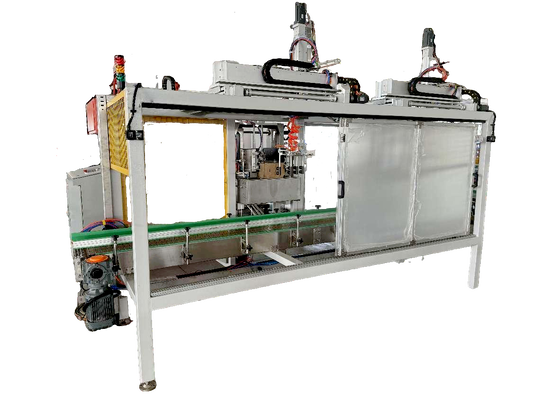

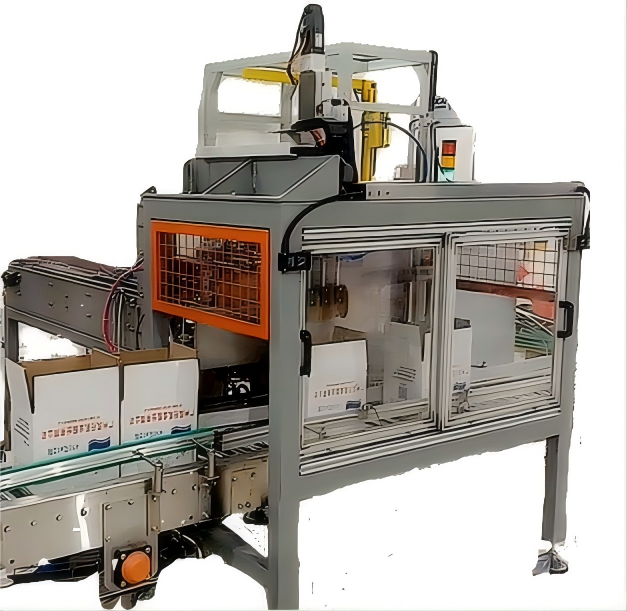

High Speed Partition Inserter Machine 30Cases/Minute 380V 50/60HZ

YQGB-30 AUTOMATIC PARTITION INERST MACHINE

Product Introduction / INTRODUCTION
The Partition Insertion Machine, particularly designed for the food industry, is a highly automated mechanical device. It is primarily used in food packaging processes to automatically insert partitions or divider sheets into packaging materials, achieving product separation, protection, or facilitating stacking.

Product Features / CHARACTERISTICS

• High-Speed Insertion: Utilizes high-speed partition insertion technology to quickly and accurately complete the insertion process, significantly enhancing packaging efficiency.

• Precise Sizing: Adjusts partition insertion according to different carton sizes, ensuring perfect alignment between partitions and cartons for improved packaging neatness and aesthetics.

• Material Versatility: Compatible with cardboard or other materials of varying thicknesses, meeting diverse packaging requirements.

• High Spacing Accuracy: Ensures precise spacing between partitions to accommodate the packaging needs of different products.

  Model number YQGB-30
  Partition size	According to customer needs
  Plug-in speed	30 Cases / minute
  The amount of cardboard stored	12
  Mechanical size	L1490mm x W1255mm x H1456mm
  Use the power supply	380V,50/60HZ,
  Use specifications	Can be more than one series
  Power / total power	1.5kw
  PLC	siemens
  Mechanical weight	1200kg
  Applicable carton	VOC
