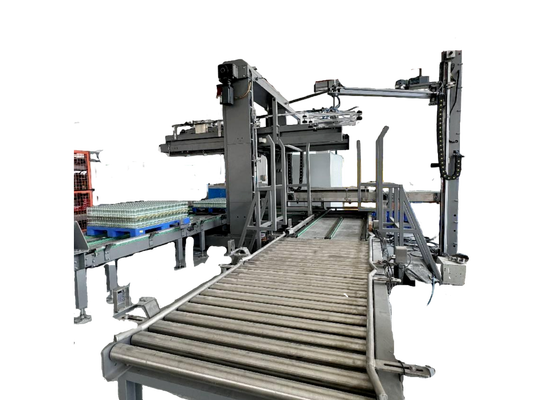

High Low Unloading Bottle Depalletizer Machine 380V 50Hz Precision Operation

HIGH/LOW BOTTLE UNLOADING PALLETIZING MACHINE /DEPALLETIZER

Product Introduction / INTRODUCTION
The Bottle/Can Depalletizer is an essential equipment in modern production lines, designed for the automatic unloading and depalletizing of stacked empty containers such as glass bottles, tinplate cans, and aluminum cans. By lifting the layers of empty containers from the bottom upward and transferring them onto the conveying line, it significantly enhances production efficiency while saving labor and time.

Product Features / CHARACTERISTICS

• High Efficiency: Capable of rapidly and continuously unloading large quantities of empty bottles/cans, substantially improving production efficiency.

• Precision Operation: Equipped with precise control systems and mechanical structures to ensure accurate and error-free unloading of each layer.

• Stable Performance: Robust construction and smooth operation enable consistent performance even under prolonged, high-intensity working conditions.

• Intelligent Control: Features a smart control system and user-friendly human-machine interface for easy operation and real-time monitoring.

• Strong Adaptability: Adapts to empty containers of various sizes, shapes, and weights, with flexible adjustments to accommodate production line changes.

  Model number YQXP-D-400
  Equipment capacity	85-110 layers per hour
  Applicable bottle type	Glass bottle, easy can PET bottle
  Standard out bottle height	800-1300mm
  Main shape size	4950*2500mm*5100mm
  Power power supply	Three-phase AC: 380V ± 5%; 50Hz
  control voltage	24V.DC
  compressed air	0.4―0.6Mpa
  aggregate capacity	20KW
  Host weight	6.5T
  noise	<85 Db
