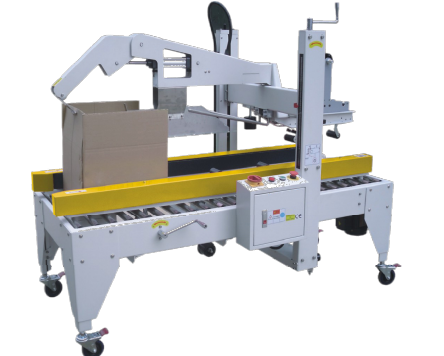

Quick Size Adjustment Automatic Lid Sealing Machine Rear Flap Folding 180kgs YQ-ZYFC-05

Automatic Lid Sealing Machine YQ-ZYFC-05

Product Introduction / INTRODUCTION
This product, developed by our company, is a carton forming and bottom sealing machine. It is a specialized packaging device that automatically performs carton opening, forming, bottom flap folding, and tape sealing during the production process, then delivers the sealed cartons to the case packer. It is an essential packaging equipment for modern enterprises engaged in automated large-scale production.

Product Features / CHARACTERISTICS

• Automatic Lid and Rear Flap Folding: Automatically folds the top and rear flaps of the carton, ensuring fast and smooth pressing without corner deformation.

• Side-Driven Design: Utilizes a side-drive mechanism suitable for heavy loads, offering easy operation and high durability.

• Quick Size Adjustment: Changeover time for different carton specifications is as short as 1 minute.

• Premium Motor: Equipped with high-performance motors from a renowned Taiwanese brand.

• Standardized Design with Ready Availability: All components of the standard model are readily available for timely supply.

• Customization Support: Non-standard customization is available to meet specific user requirements

  Model YQ-ZYFC-05
  Applicable carton	(L)200-600(W)150-500(H)120-500mm Table height: minimum 580mm, maximum 675mm
  The packing speed	1000-1200 cases / hour
  The amount of cardboard stored	It depends on the thickness of the cardboard
  Mechanical size	L*1672W*830H*1180mm
  Use the power supply	110/220V,50/60Hz
  Use gas source	5-6kg/cm2
  Power / total power	-
  Use tape	48mm, 60mm, 75mm for optional use
  Mechanical weight	180kgs
