PLC Vertical Unpacking Machine Fully Automated 600-720 Cases / Hour YQKX-20

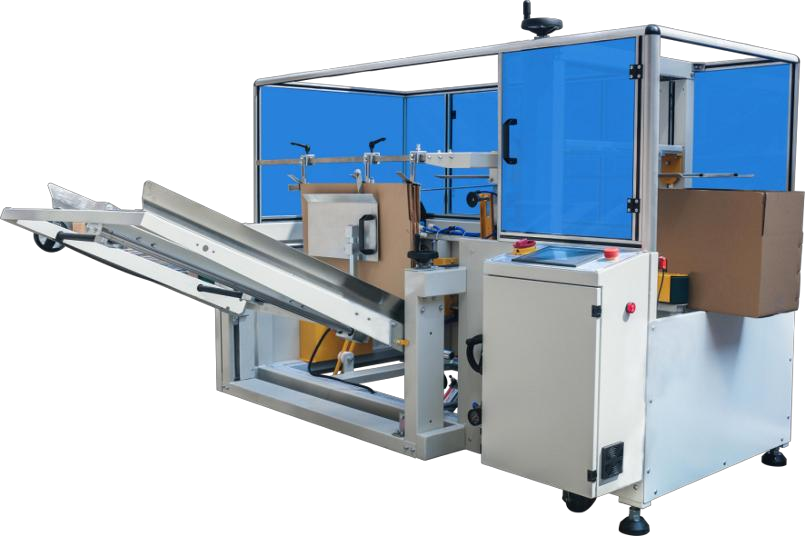

YQKX-20VERTICAL UNPACKING MACHINE

Product Introduction / INTRODUCTION
This product, developed by our company, is a vertical case erector, also known as a carton forming and bottom sealing machine. It is a specialized packaging device that automatically performs carton opening, forming, bottom flap folding, and tape sealing during the production and packaging process, then conveys the sealed carton to the packing machine.

Product Features / CHARACTERISTICS

• Excellent Performance with Soft Cartons: Provides outstanding carton forming and bottom sealing effects for soft cartons.

• Vertical Carton Storage: Features a vertical carton storage system, allowing empty cartons to be replenished at any time.

• Fully Automated Process: Carton suction, forming, and bottom sealing are fully automated and seamlessly integrated.

• Enhanced Safety Design: Equipped with safety doors on all sides, with an optional door-opening stop function available.

• Easy Troubleshooting: Fault points can be located via the touch screen, enabling quick and easy fault resolution.

• Intelligent Detection and Alarms: Includes tape absence detection alarms and empty carton warnings.

• Customizable Options: Supports non-standard customization according to user requirements.

  Model number YQ-ZX-20
  Applicable carton	(L)200-450(W)150-400(H)100-380mm
  The packing speed	Between 600-720 cases / hour
  The amount of cardboard stored	It depends on the thickness of the cardboard
  Mechanical size	(L)2000(W)1900(H)1200mm
  Use the power supply	220/380V,50/60Hz
  Use gas source	5-6kg/cm2 150L/min
  Power / total power	-
  Use tape	48mm, 60mm, 75mm for optional use
  Mechanical weight	380kgs
  PLC	Siemens of Germany and the touchscreen
