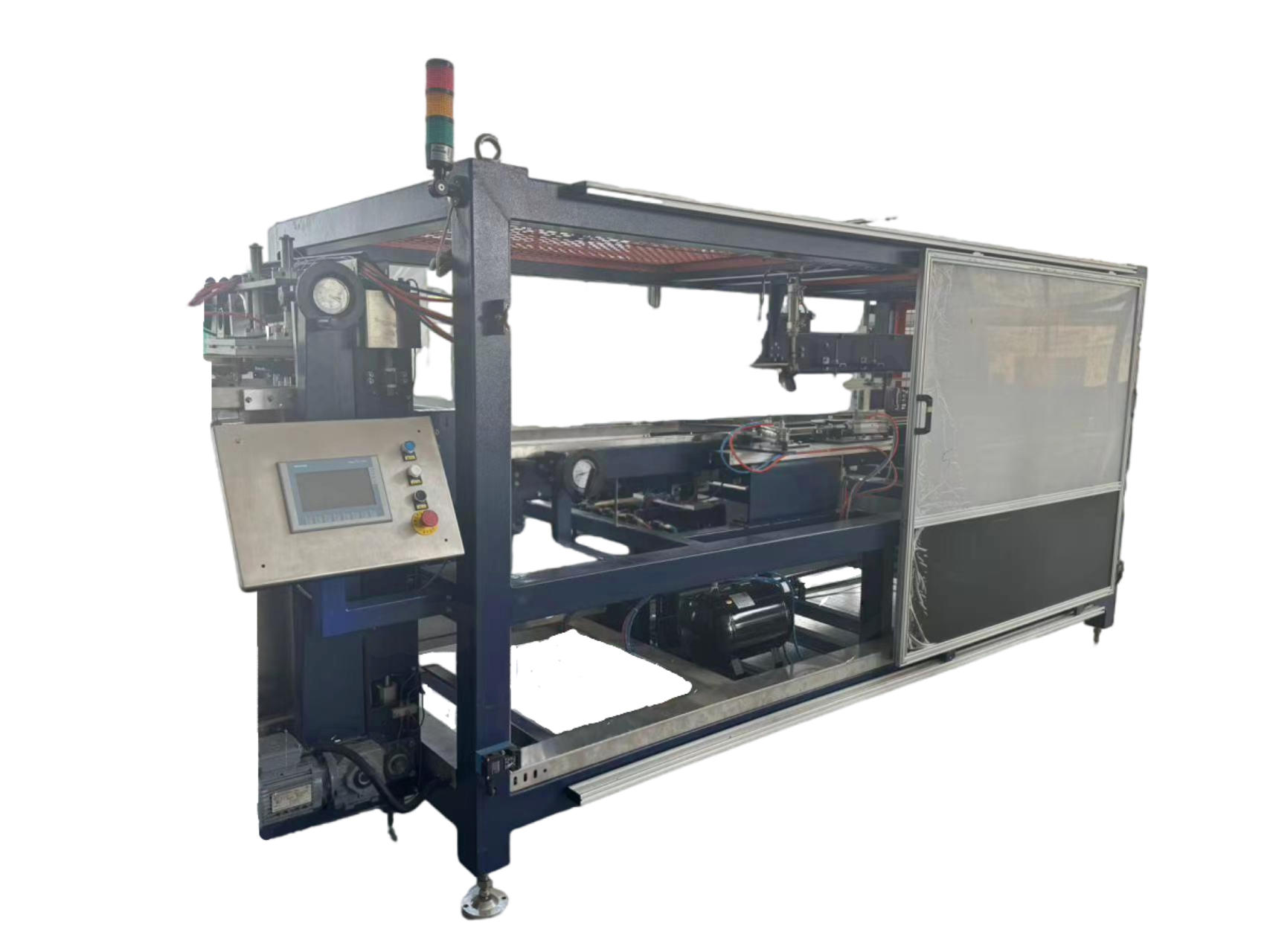

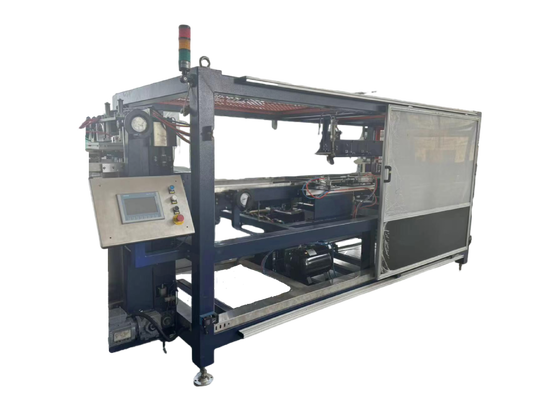

Safety PLC Circulation Chain Medium Speed Unpacking Machine YQKX-25

YQKX-25 CIRCULATION CHAIN MEDIUM-SPEED UNPACKING MACHINE

Product Introduction / INTRODUCTION
The Circulating Chain Medium-Speed Case Erector, independently developed by our company, adopts a circulating chain drive mechanism to achieve automated medium-speed carton opening operations. It is primarily designed for the rapid opening, forming, and bottom sealing of flat cartons. With its moderate operating speed (specific speed varies by model), this machine ensures efficiency while maintaining stability and reliability. This balanced speed setting meets the needs of large-scale production while preventing potential issues such as carton damage or improper sealing caused by excessive speed.

Product Features / CHARACTERISTICS

• High Automation: Equipped with a PLC and display control system, the entire process is fully automated. Features include early warning for material shortages and automatic shutdown in the absence of materials, ensuring simple and convenient operation.

• Wide Applicability: Compatible with cartons of various sizes and specifications.

• Stability and Durability: Key components such as geared motors, PLCs, touch screens, and photoelectric sensors are sourced from internationally renowned brands to ensure long-term reliability.

• High Safety Performance: Integrated with comprehensive safety protection devices to ensure operational safety throughout the production process.

  Model number YQ-KX-25
  Out of the box speed	In 30 cases / min
  Machine size	L1490mm x W1255mm x H1456mm
  machine weight	1000kg
  Applicable carton size	L200-500mm*W200-500mm*H120-500mm
  Table height	Min1080mm (Subject upon request)
  source	380V,50/60HZ,1.5kw
  air supply	5Kg/cm²,50L/min
  ambient condition	Humidity of 98%, temperature of 0-40℃
  Forming bonding mode	Tape, can meet the requirements of coated carton, coated carton
  PLC	Siemens of Germany and the touchscreen
