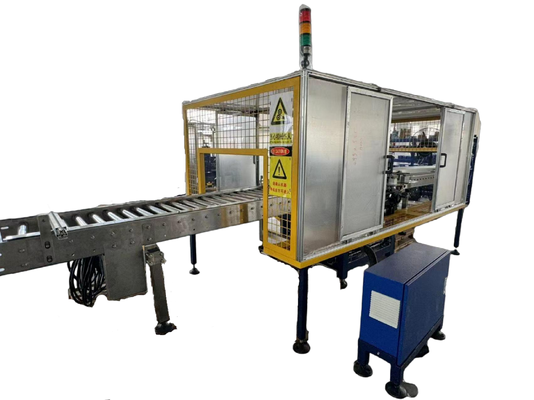

380V 50/60HZ High Speed Case Erector Unpacking Machine 50 Cases / Min YQKX-40

YQKX-40 High speed case Unpacking Machine

Product Introduction / INTRODUCTION
This high-speed case erector, independently developed by our company, is primarily used for ultra-fast opening and forming of flat cartons, while completing bottom sealing with stable performance. With a moderate and efficient speed of 50 cases per minute, the machine ensures both productivity and reliability. This balanced speed setting meets the demands of large-scale production while avoiding issues such as carton damage or improper sealing that may arise from excessively high speeds.

Product Features / CHARACTERISTICS

• High Automation: Equipped with a PLC and display control system, the entire process is fully automated. The machine features early warning for material shortages and automatic shutdown in the absence of materials, ensuring user-friendly operation.

• Wide Applicability: Compatible with cartons of various sizes and specifications.

• Stability and Durability: Key components such as geared motors, PLCs, touch screens, and photoelectric sensors utilize internationally renowned brands to ensure long-term reliability.

• High Safety Performance: Comprehensive safety protection devices are integrated to ensure operational safety throughout the production process.

• Model number YQKX-40
  Out of the box speed	Stable 40 / min, up to 50 cases / min
  Machine size	L3800×W1480×H2250mm
  machine weight	1500kg
  Applicable carton size	L200-500mm*W200-500mm*H120-500mm
  Table height	Min1080mm (Subject upon request)
  source	380V,50/60HZ,1.5kw
  air supply	5Kg/cm²,150L/min
  ambient condition	Humidity of 98%, temperature of 0-40℃
  Forming bonding mode	Tape, can meet the requirements of coated carton, coated carton
  PLC	Siemens of Germany and the touchscreen
